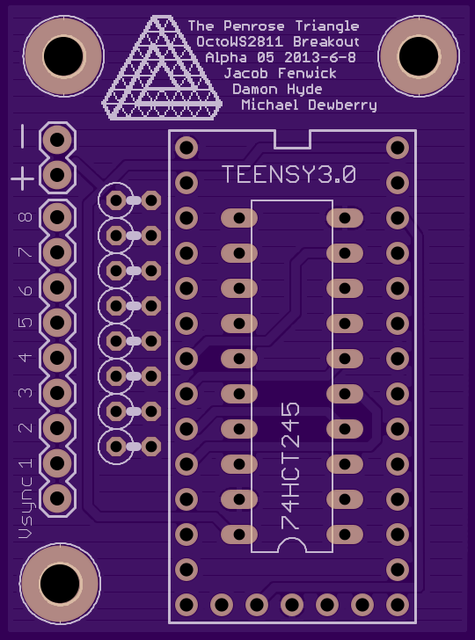

PCBs June 09, 2013 Just in on GrabCAD: The PCB layout designed by Dewb, Damon, and Jacob: Each PCB approximately 1" x 1.5". The test boards should arrive within a week. We will test these and make final revisions. « First plasma cut flanges The Base of Operations (aka Surly's Shop) »
